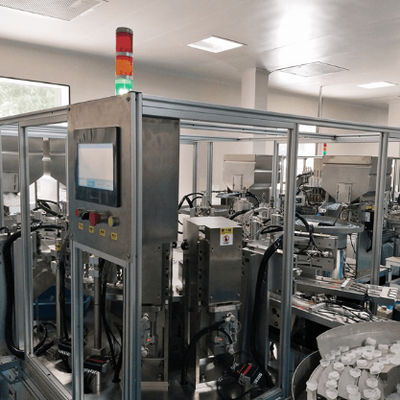

High Precision Euro Cap Assembly Machine with 99% Qualified Rate and 95% Operation Rate for IV Infusion Bags

Nom De La Marque:	SENCAN
Numéro De Modèle:	SC-TP-821
MOQ:	1 ensemble
Prix:	Negotiate price according to actual situation
Conditions De Paiement:	T/T, L/C
Capacité D'approvisionnement:	2-20 ensembles

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

Chine

Certification:

CE, ISO9001

Pneus de fonctionnement:

Platine

Casquettes applicables:

Les capitaux propres en euros

Taille du produit:

Grand

Précision:

Haut

Type de produit:

Machine d'assemblage

Couleur:

Couleur métallique en acier inoxydable

Interface de fonctionnement:

Écran tactile

Garantie:

1 an

Capacité de production:

4500 à 16000 par heure

Alimentation:

220 V / 50Hz

Pression atmosphérique:

0,6-0,8MPA

Configuration:

Machine à assembler le capuchon de perfusion

Modèle de produit:

Capsules pour perfusion médicale

Marque de produit:

Euro

Tension:

220V

Détails d'emballage:

caisse en bois

Mettre en évidence:

99% Qualified Rate Euro Cap Assembly Machine

95% Operation Rate Euro Cap Assembly Machine

220V/50Hz Euro Cap Assembly Machine

Description du produit

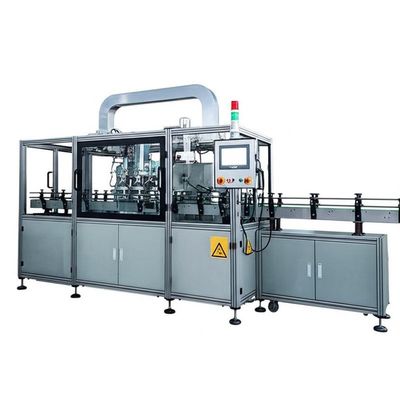

Customizable Euro Cap Assembly Machine

A precision-engineered solution for automatic assembly of peel seal foil caps, designed to meet your specific production requirements while maintaining high quality standards.

Key Features

Designed for automatic assembly of easy peel foil caps for IV infusion soft bags and bottles
Constructed with stainless steel + aluminum alloy materials, fully compliant with GMP standards
Independent driving source for each workstation, facilitating easy maintenance
Product-contact surfaces are polished for optimal product protection
Automated foil cutting and welding process
Integrated quality check function at each assembly stage to eliminate defective products
User-friendly PLC control system with human-machine interface, requiring minimal operator training
High-precision servo motor + indexing drive system ensures superior assembly accuracy
Pneumatic power system reduces maintenance time and technical requirements
Fully customizable to match your product specifications, capacity needs, and production demands

Technical Specifications

Applicable Products	Peel seal foil caps, foil seal closures and lids
Production Speed	1500-8500pcs/hr (customizable to customer requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kw/hr
Dimensions	Varies according to production speed requirements
Weight	Approximately 2000kg
Operator Requirements	3 sets/2 persons (recommended 1 set/person)
