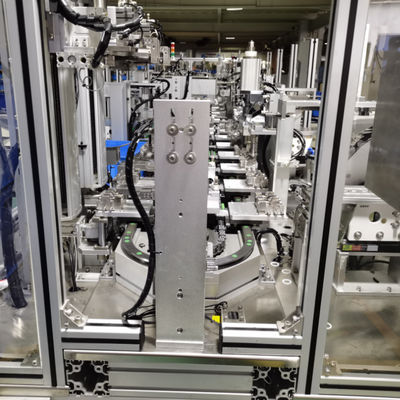

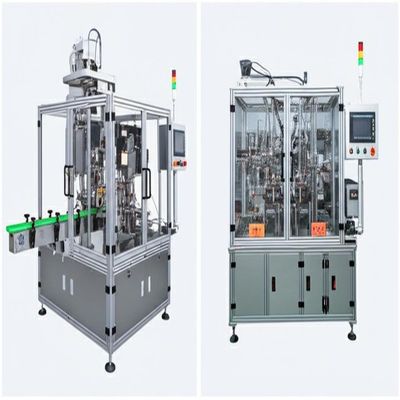

Fully Automated Lotion Pump and Trigger Sprayer Assembly Machine with 0.5m³/min Air Consumption and 4L Silicone Oil Storage

Nom De La Marque:	SENCAN
Numéro De Modèle:	SC-TP-798
MOQ:	1 set
Prix:	Negotiate price according to actual situation
Conditions De Paiement:	T / t, l / c
Capacité D'approvisionnement:	2-20 ensembles

Informations détaillées

Lieu d'origine:

CHINE

Certification:

CE, ISO9001

Tension:

220V

Entretien:

Facile

Interface opérationnelle:

Écran tactile

Méthode d'alimentation:

Disque vibrant

Détection des erreurs:

Automatique

Méthode de fonctionnement:

Contrôle de l'écran tactile

Certification des produits:

CE, ISO

Consommation d'air:

0.5 m3/min

Niveau d'automatisation:

Entièrement automatisé

Capacité:

Selon l'exigence du client

Détails d'emballage:

Casse en bois

Mettre en évidence:

Description du produit

Lotion Pump Liquid Trigger Sprayer Assembly Machine and Precise Daily Necessities Assembly Machine for Consistent and Accurate Assembly

Key Features

Linear sliding rail conveying system with servo motor drive for precise intermittent movement and static assembly positioning
Independent workstations with secondary positioning to achieve over 98% product qualification rate
Cylinder-powered manipulators for simplified maintenance and faster spare parts replacement
Automatic silicone oil application during tube insertion with 4L oil storage capacity
Optional enclosure for feeding plate to reduce operational noise
Integrated quality detection at each assembly stage to eliminate defective products
PLC control system with touch screen interface for easy operation

Technical Specifications

Applicable Products	Lotion pump, shampoo pump, water sprayer, trigger sprayer, perfume pump, spray nozzle
Production Speed	1500-2500pcs/hr (customizable to customer requirements)
Product Qualification Rate	Above 98%
Operation Rate	Above 95%
Power Requirements	AC380V, 50Hz, 4kw/hr
Dimensions	Variable based on production speed requirements
Weight	Approximately 3000kg
Operator Requirement	1 person per machine
