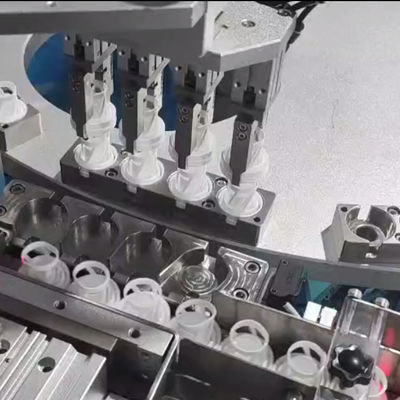

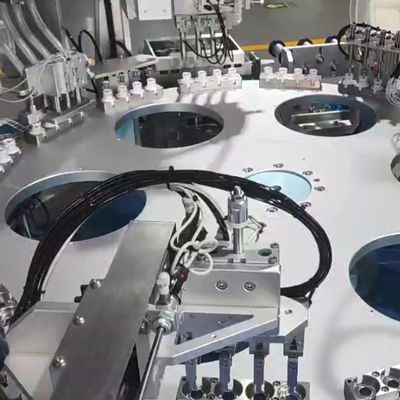

High Efficiency Desiccant Cap Assembly Machine with 0.5-0.8MPa Air Pressure and 1500-8500pcs/hr Production Speed

Nom De La Marque:	SENCAN
Numéro De Modèle:	SC-TP-789
MOQ:	1 set
Prix:	Negotiate price according to actual situation
Conditions De Paiement:	T / t, l / c
Capacité D'approvisionnement:	3-20 ensembles

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

CHINE

Certification:

CE, ISO9001

Tension:

220V

Couleur du produit:

Argent

Taille du câble:

Système triphasé à cinq fils

Pression atmosphérique:

0,5-0,8 MPA

Produits appropriés:

Brosse à dents, rasoir, peigne, etc.

Types d'Assemblée:

couvercle du sécheur

chapeaux appropriés:

Euro-cap

Protection contre la sécurité:

Bouton d'arrêt d'urgence

Fonction:

Assemblez automatiquement diverses nécessités quotidiennes

Taux d'exploitation:

96%

Contrôle:

CLu

Méthode de fonctionnement:

Contrôle de l'écran tactile

Caractéristiques:

Haute efficacité et facilité d'utilisation

Système de détection:

capteur photoélectrique

Détails d'emballage:

Casse en bois

Mettre en évidence:

0.5-0.8MPa Desiccant Cap Assembly Machine

96% Silica Gel Filling Machine

1500-8500pcs/hr Sealing Cap Assembly Machine

Description du produit

Features

1. Applied for automatic assembly of desiccant caps for pharmaceutical and health care use.

2. Automatic filling of granular and powder desiccant like molecular sieve and silica gel, as well as caps with desiccant capsules or cores insertion.

3. Automatically punch and cut sealing paper, reduce customers’ cost and improve rate of qualified products.

4. Sealing paper waste will be automatically collected to reduce labor of operators.

5. Equipped with desiccant supply bin which can protect desiccant from moisture and pollution.

6. Round shaped caps will be loaded by feeding device which is stable and fast.

7. Each assembling process is well checked, to be sure 100% qualification of qualified products.

8. Equipped with automatic counting function for production statistics.

9. Qualified and unqualified products are released from separate exits.

10. Main drive from servo motor + indexing drive, with stable running speed and high assembly accuracy.

11. PLC control system and touch screen, easy operation for operators.

12. Customized according to customer's specifications and capacity requirements.

13. Connect with injection molding machine, camera inspection system or other equipment to form an overall automatic production line.

Properties

Applicable products	desiccant cap, silica gel desiccant cap, safety cap, CRC cap
Production speed	1500-8500pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2000kg
Operator	3sets/2persons,recommend 1set/person
